INTRODUCTION

LOW SPEED PRODUCTIONS

Low capacity max 18 pack per min
Single lane
Pack types: film only,  film + pad

MEDIUM SPEED PRODUCTIONS

Medium capacity max 55 pack per min
Single lane
Pack types: film only,  film + pad

HIGH SPEED PRODUCTIONS

High capacity max 110 pack per min
Double lane
Pack types: film only,  film + pad

RELIABLE PERFORMANCE

EASY TO USE AND MAINTENANCE

DATA

Lanes   Single lane and double lane
Pack type  -film only
-film+pad
Bottle volumes   From 250 ml to 10 lt
Capacity at single lane   max 55 pack/min
Capacity at double lane    max 110 pack/min
Pack formats   4x3, 2x3, 4x6, 2x2, 2x1, etc.
Groups movement    3 or 4 servo motors: feed-wrap-cutting
Frame  Painted Steel



FEATURES

Continuous_Product_Separationing Continuous Product Separation:
  • Separation system with electronic control. This enable us to easy format changes.

Wrapping_with_flybarWrapping with flybar:
  • Film-transport flybar for full wraparound packaging.

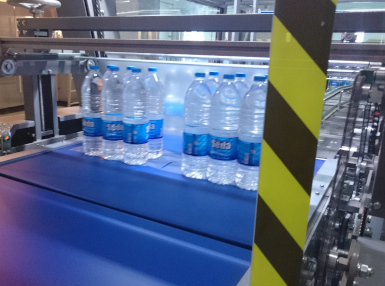

Cutting_unit Cutting Unit:
  • Create precise cutting. Easy acess to unit for maintenance works.

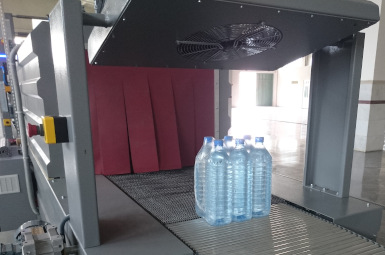

Heat_Shrink_Tunnel Heat Shrink Tunnel:
  • Tunnel comes with a good design; properly insulated and optumum hot air flow inside.

Energy-saver heat shrink tunnel:
  • Our new energy saver heat tunnel reduce power consumption on tunnel without sacrificing the pack quality.

Automatic reel change:
  • The unit cut-seal the film automaticly, this makes possible to continue without stopping the machine film unwinding and the production cycle.

MACHINE MODELS

LOW CAPACITY Model 201 series :
  • Sealing bar type,
  • Single lane,
  • 201/B : 12ppm, Film only with ready tray
  • 201/S : 12ppm, Film only for max 2 lt bottles
  • 201/L : 12ppm, Film only for max 10 lt bottles

LOW CAPACITY Model 301 series :
  • Sealing bar type,
  • Single lane,
  • 301/B : 18ppm, Film only with ready tray
  • 301/S : 18ppm, Film only for max 2 lt bottles
  • 301/L : 18ppm, Film only for max 10 lt bottles
  • 301/C : 18ppm, Film+Pad for max 2 lt bottles
MEDIUM CAPACITY Model 401 series :
  • Overlap type,
  • Single lane,
  • 401/B : 40ppm, Film only with ready tray
  • 401/S : 40ppm, Film only for max 2 lt bottles
  • 401/L : 40ppm, Film only for max 10 lt bottles
  • 401/C : 40ppm, Film+Pad for max 2 lt bottles
  • 401/SH : 55 ppm, Film only for max 2 lt bottles
  • 401/LH : 55 ppm, Film only for max 10 lt bottles



HIGH CAPACITY Model 401 series :
  • Overlap type,
  • Double lane,
  • 401/DS : 80ppm, Film only for max 2 lt bottles
  • 401/DL : 80ppm, Film only for max 10 lt bottles
  • 401/DSH : 110 ppm, Film only for max 2 lt bottles
  • 401/DLH : 110 ppm, Film only for max 10 lt bottles
